VET-60 Veterinary Anesthesia Machine
Model VET-60
An ergonomic anesthesia and ventilation system for pet hospitals, research institutes and teaching labs. Enter the animal's weight and the built-in database suggests tidal volume, I:E ratio, respiratory rate and pressure, ready to fine-tune for the case.
- Four ventilation modes: VCV, PCV, SIMV-VC and SPONT, plus manual and ACGO
- 10.1" display with real-time flow and pressure waveforms, tidal volume and end-tidal data

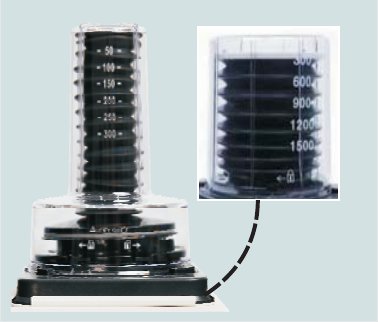

- Interchangeable bellows (0–300 mL and 0–1,500 mL) for small and large patients
- Vaporizer with pressure, flow and temperature compensation for isoflurane or sevoflurane
Ventilation modes
Volume control
Inspiration ends once the delivered gas volume reaches the set tidal volume.
Pressure control
Inspiration ends once airway pressure reaches the set peak inspiratory pressure.
Spontaneous
If spontaneous breathing stops or weakens for a set time, the machine steps in with assisted breaths, then hands back control when the animal recovers.
Synchronized intermittent mandatory
Mandatory breaths are synchronized with the animal's own effort within a trigger window, with pressure support for spontaneous breaths outside it.
Alarms you can act on
Set limits for peak pressure, tidal volume, minute volume, rate, PEEP, oxygen concentration, end-tidal CO2 and apnea.
Three-level, color-coded audible and visual alarms make priority clear at a glance. Alarm volume is adjustable, every alarm can be enabled or disabled, and alarm records can be reviewed after the procedure.
Designed for daily use

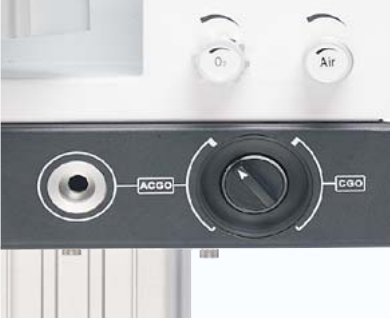

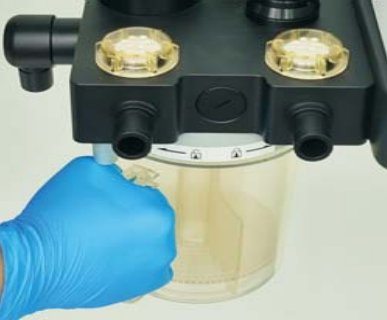

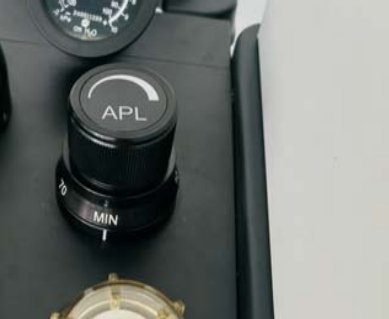

The CO2 absorber canister has a handle for one-handed removal. A single switch moves between open and closed circuit, and another between manual and mechanical ventilation. The APL valve carries a precise pressure scale, and the Selectatec®-type bypass mount makes vaporizer installation and maintenance simple.
Specifications
Main specifications
| Display | 10.1" (1280 × 800) |
|---|---|
| Power | AC 100–240 V, 50/60 Hz |
| Battery | ≥ 150 min |
| Gas supply pressure | 0.28–0.6 MPa |
| O2 flush | 25–75 L/min |
| Flowmeter | 0–4 L/min |
| APL valve | 1–70 cmH2O |
| CO2 absorbent | 1,200 mL |
| Airway pressure | −20 to 100 cmH2O |
| ACGO | One-key switching |
| Bellows | 0–300 mL / 0–1,500 mL |
Ventilator (gas-driven, electronically controlled)
| Modes | VCV, PCV, SIMV-VC, SPONT, Manual, ACGO |
|---|---|
| Tidal volume | 20–1,500 mL |
| Rate | 2–60 BPM |
| I:E | 4:1 to 1:8 |
| PEEP | OFF / 3–30 cmH2O |
| Pinsp | 5–50 cmH2O |
| Inspiratory hold | ≤ 30 s |
| Tinsp | 0.2–10 s |
| Plimit | 10–60 cmH2O |
| Flow trigger | OFF / 1–20 L/min |
| Apnea time | 15–30 s |
| Monitored values | VT, MV, Ppeak, PEEP, Rate, EtCO2, FiCO2, FiO2 |
Standard configuration
| Vaporizer | Pressure, flow and temperature compensated |
|---|---|
| Isoflurane | 0.2–6% |
| Sevoflurane | 0.2–8% |
| Vaporizer mount | Single |
| Oxygen hose | NIST |
| Breathing circuit | 22 mm / 15 mm |
| Breathing bags | 0.5 / 1 / 2 / 3 L |
Optional
| Flowmeter | Dual gas (O2, Air), 0–5 L/min |
|---|---|
| CO2 module | 0–100 mmHg |
| O2 sensor | 21–100% |
| Endotracheal tubes | Sizes 2–10 |
| Laryngoscope | Blades 2, 3, 4 (LED) |
| Anesthesia masks | Sizes 4, 5, 6 |
| Non-rebreathing circuit | Available |
Specifications may change without notice. Contact us to confirm the configuration for your order.
