VT-800 Veterinary Anesthesia Ventilator
Model VT-800
A compact, ergonomically designed ventilator for pet hospitals, research institutions and teaching labs, built to make mechanical ventilation simple and safe. Enter the animal's weight to load suggested settings, then fine-tune as needed.
- Four modes: VCV, PCV, SIMV and SPONT, with automatic apnea backup in SPONT
- 8" HD touch screen with real-time pressure and flow waveforms
- Built-in digital breathing sensor for accurate monitoring
- Three-level color, sound and light alarms for airway pressure, tidal volume, apnea and circuit occlusion
Ventilation modes
Volume control
Tidal volume is the target: inspiration ends once the animal has received the set volume.
Pressure control
Peak inspiratory pressure is the target: inspiration ends once airway pressure reaches the set value.
Synchronized intermittent mandatory
Mandatory breaths at preset parameters synchronize with the animal's own effort inside the trigger window; outside it, spontaneous breaths get pressure support.
Spontaneous
Supports spontaneous breathing. If breathing stops or stays weak for a set time, assisted ventilation starts automatically and ends when it resumes.
Set up by weight

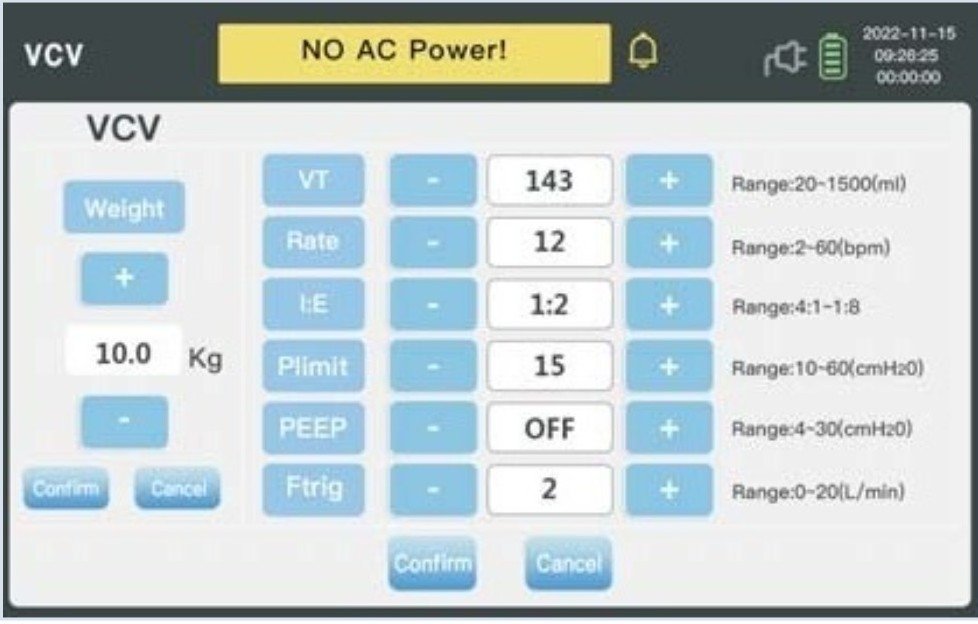

Enter the animal's weight and the VT-800 loads suggested tidal volume, rate, I:E, pressure limit, PEEP and flow trigger from its built-in standards database. Every value can then be adjusted on the touch screen.

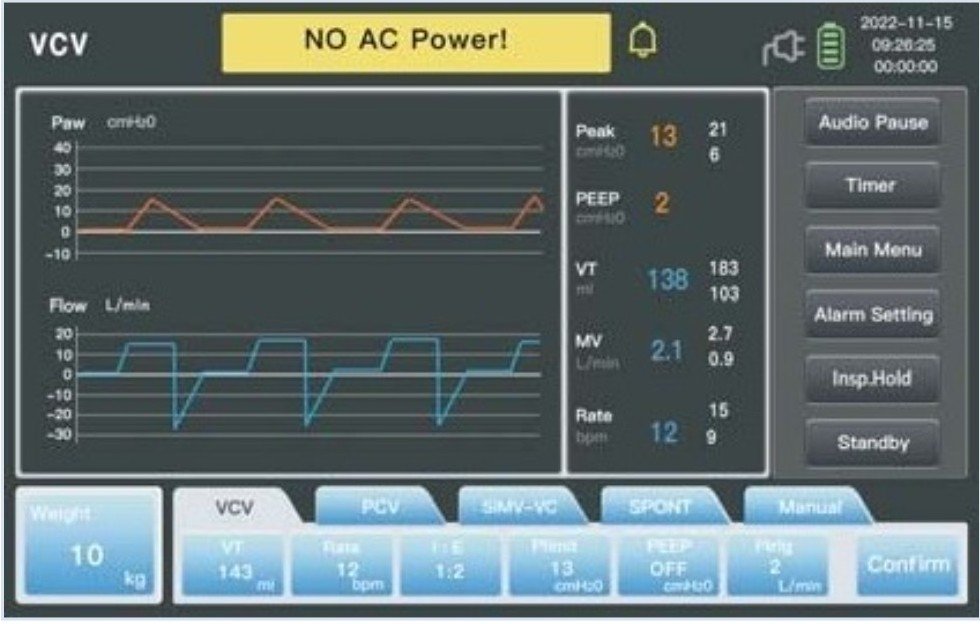

The main screen shows pressure and flow waveforms alongside peak pressure, PEEP, tidal volume, minute volume and rate, so the team can see how the patient is responding at a glance.
Two standard bellows cover animals of different sizes, and international-standard connection interfaces make it straightforward to integrate into an existing anesthesia setup.
Specifications
Parameter ranges
| Animal weight | 2–100 kg |
|---|---|
| Tidal volume | 20–1,500 mL |
| Breath rate | 2–60 bpm |
| I:E ratio | 4:1 to 1:8 |
| PEEP | OFF / 3–30 cmH2O |
| Inspiratory pressure (Pinsp) | 5–50 cmH2O |
| Inspiratory plateau time | ≤ 30 s |
| Inspiratory time (Tinsp) | 0.2–10 s |
| Pressure limit (Plimit) | 10–60 cmH2O |
| Flow trigger | OFF / 1–20 L/min |
| Apnea time | 15–30 s |
General
| Display | 8" HD touch screen |
|---|---|
| Ventilation modes | VCV, PCV, SIMV, SPONT |
| Battery | Built-in lithium, 2–3 h |
| Bellows | Two standard sizes |
| Breathing sensor | Built-in, digital |
| Interfaces | International standard |
| Alarms | Three-level color, sound and light |
| Alarm coverage | Airway pressure, tidal volume, apnea, circuit occlusion |
Specifications may change without notice. Contact us to confirm the configuration for your order.
